Paediatric Diabetes – Insulin Pump Therapy Systems

Paediatric Diabetes – Insulin Pump Therapy Systems

How to exit closed-loop on insulin pump therapy systems

Omnipod 5:

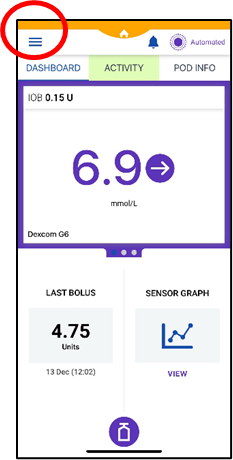

Open up PDM onto the home screen and click the three lines in the top left-hand corner.

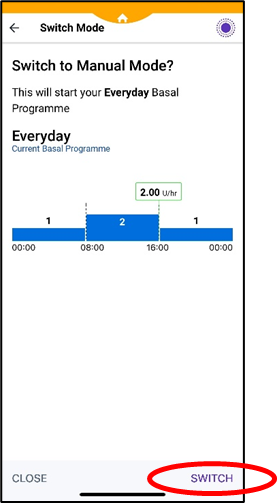

Click “switch mode” and confirm you want to switch into manual mode by clicking “switch”.  This will put the pump into manual mode.

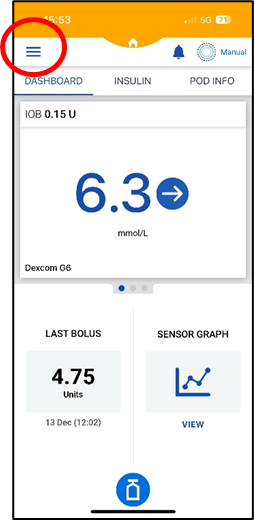

Once in manual mode, go back into the three lines in the top left hand corner to open the drop down bar.

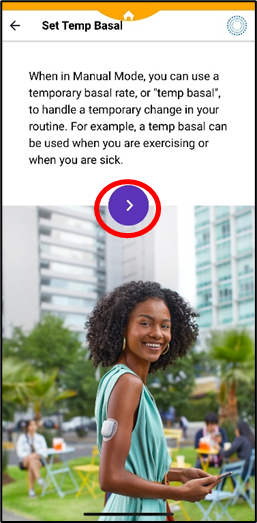

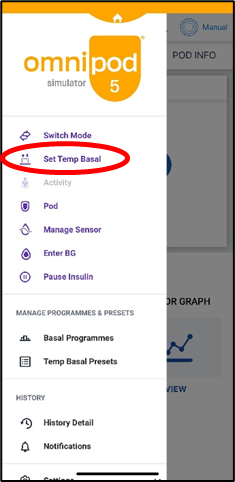

Click “Set Temp Basal” and click the next arrow.

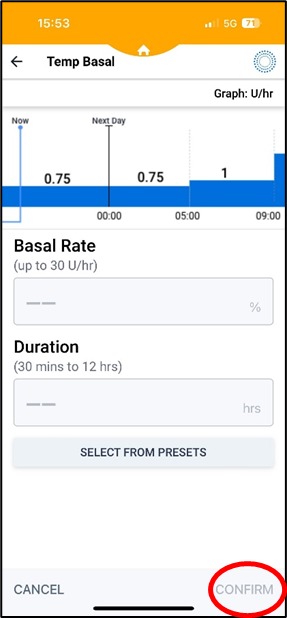

Set basal rate and duration based on ‘Sick day rules’ guideline and click “Confirm”.

Tandem t:slim:

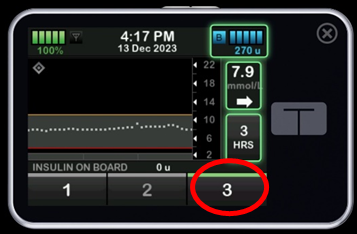

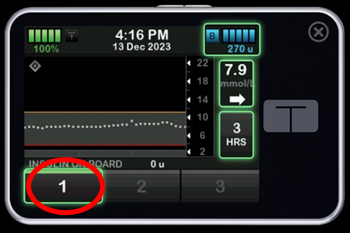

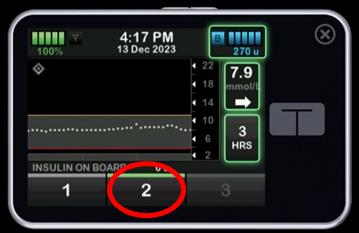

Open up the pump using the 1-2-3 step sequence.

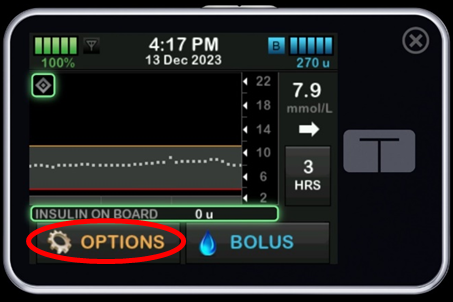

This will open up the home screen. From here, click on the ‘Options’ tab.

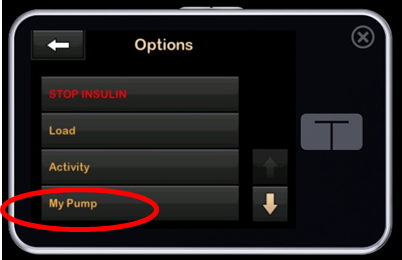

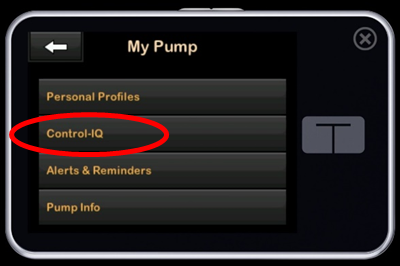

From here, click on “My Pump” and then “Control IQ”.

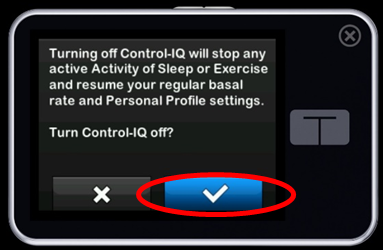

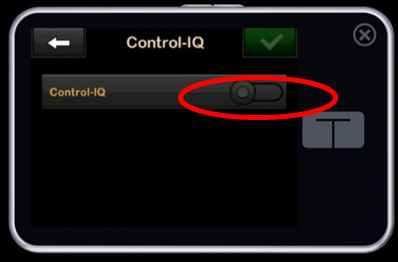

Then, click the green toggle off and a confirmation screen will appear, click the blue tick.

The green toggle will then go grey/dark to indicate it is off.

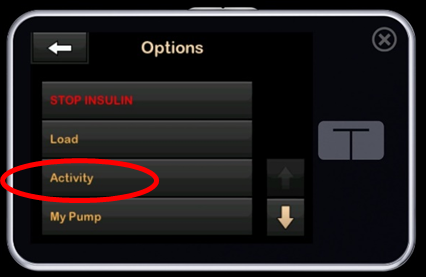

Then, go back onto the first options bar and click ‘Activity’:

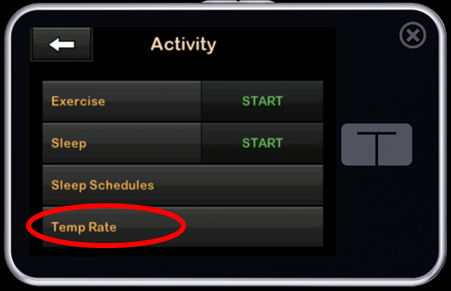

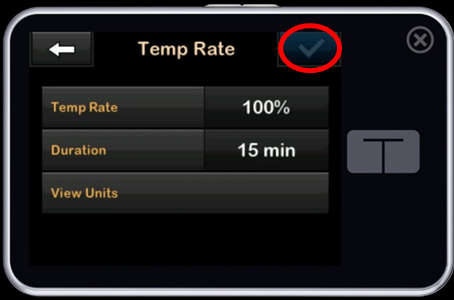

Then, click “Temp Rate” and input temporary basal rate and duration based on ‘Sick day rules’ guideline. Then, click the blue tick to confirm changes.

Medtronic 780G:

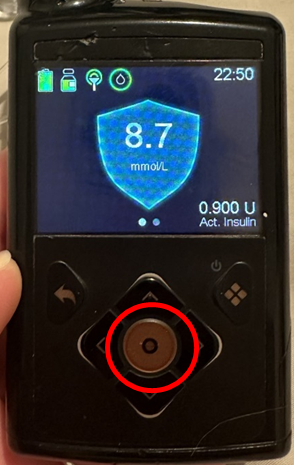

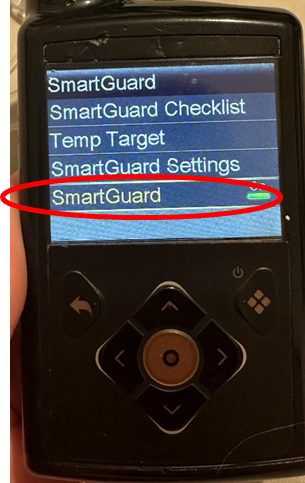

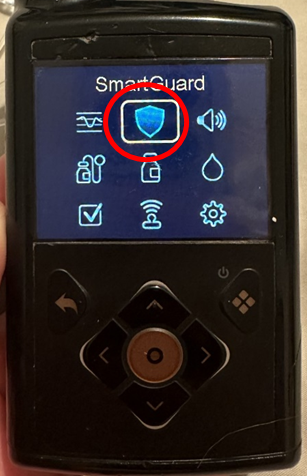

Open up the pump and click the middle circular button to bring up the home screen.  Following this, click on the ‘SmartGuard’ icon and turn off SmartGuard – this exits closed loop.

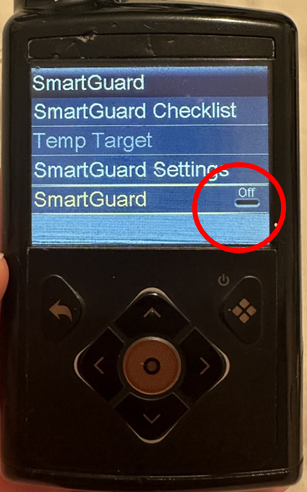

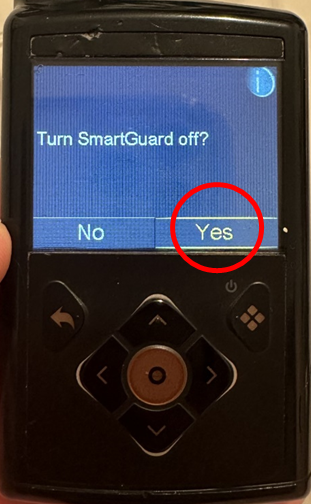

Confirm that you want to turn SmartGuard off by clicking ‘Yes’ and you will see that SmartGuard has been turned off as it has turned from green to black.

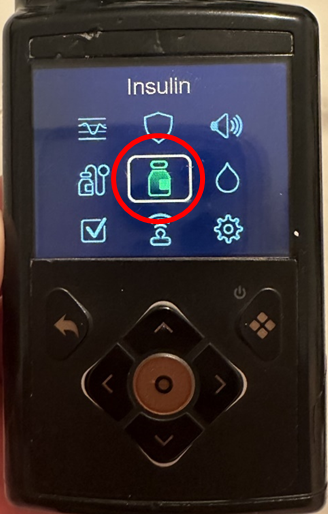

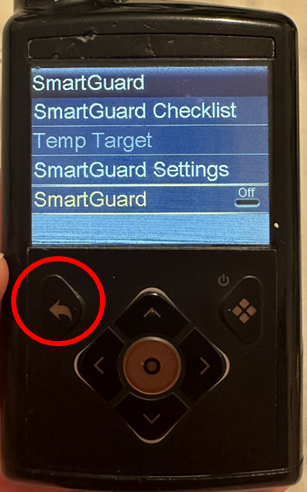

Once SmartGuard has been turned off, go back onto the main menu by clicking the back arrow key. Once on the main menu, go into the ‘insulin’ tab.

Once in the insulin tab, go into ‘Basal’ and click ‘Temp Basal’.

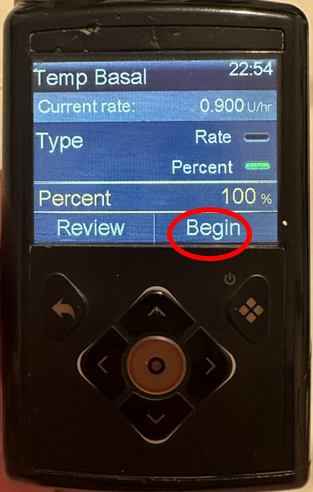

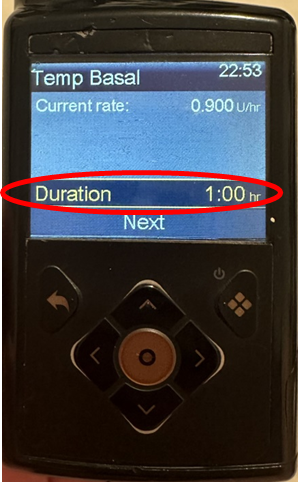

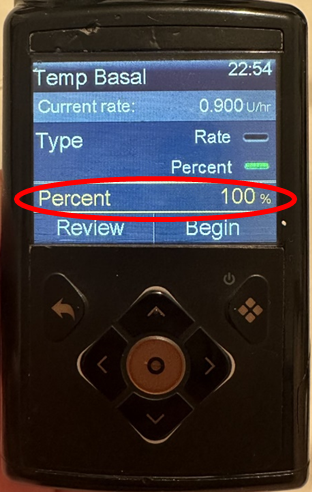

Once in the ‘Temp Basal’ tab, change the percentage of increased basal and duration based on the ‘Sick day rules’ guideline. Then click ‘Begin’.

Ypsomed CamAPS

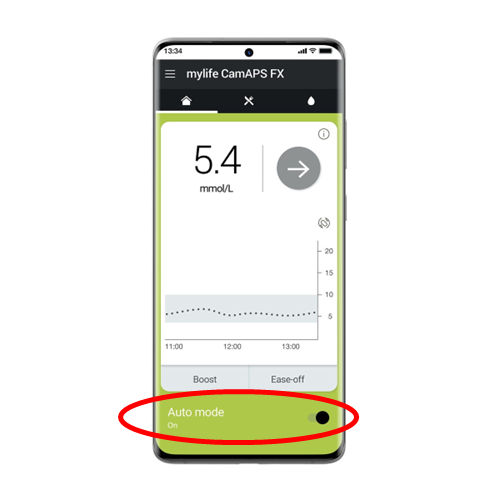

First of all, access the Mylife CamAPS FX app on the mobile phone and turn off auto mode by switching the toggle at the bottom right of the screen. The screen should then go grey to indicate that Auto mode is off.

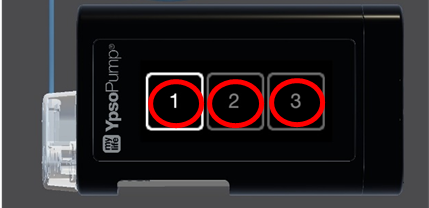

Once Auto mode is off, then go to the physical pump.  Open the pump by swiping the screen to the right and clicking ‘1’, ‘2’ and ‘3’. This will unlock the screen.

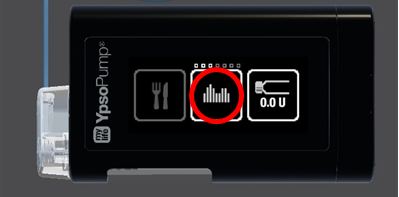

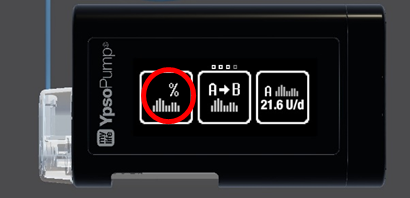

Then click onto the ‘basal rates’ tab which looks very similar to a bar chart/tower graph. Next, click the icon on the left, which has a percentage sign in the corner.  This is the temporary basal rate tab.

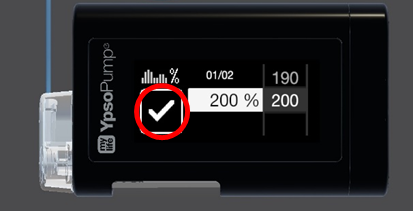

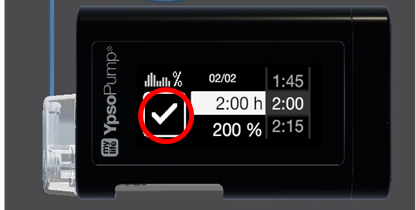

This will then ask you what rate you’d like – increase the basal rate and duration as per the ‘Sick day rules’ guideline. Then click the ‘tick’ to confirm.

The pictures below are for demonstration purposes only

If your symptoms or condition worsens, or if you are concerned about anything, please call your GP, 111, or 999.
